RANS Inc.

http://www.rans.com/

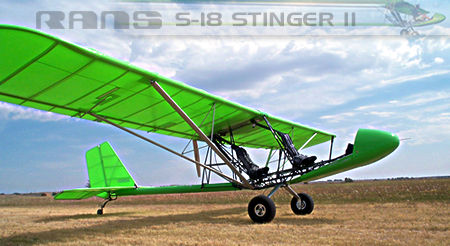

S-18 STINGER II

SPECIFICATIONS	52 HP	65 HP
Wing Span	31 ft	31 ft
Area	152 sq ft	152 sq ft
Mean Chord	4 ft 10.5 in	4 ft 10.5 in
Aspect	6.33:1	6:33:1
Length	22 ft 1 in	22 ft 1 in
Height (Tailwheel down)	81 in	81 in
Number of Seats	2	2
Landing Gear	F/TD	F/TD
Fuel Capacity	9 gal US Std.	9 gal US
POWER PLANT	503	582
Engine	Rotax 503 DC	Rotax 582
Output	52 hp	65 hp
Propeller Diameter	66 in	68 in
Propeller Type	3-blade Ivo	3-blade Ivo
Gear Reduction	1:2.58	1:2.58
Fuel G.P.H	4.5 gal @ 85%	5.75 gal @ 85%
PERFORMANCE
Take Off Roll (at gross weight)(2 flaps)	330 ft	300 ft
Rate of Climb (at gross weight)	500 fpm	700 fpm
Cruise (at gross weight)	60 mph	65 mph
VNE	90 mph	90 mph
Stall Clean (at gross weight)	42 mph	46 mph
Stall Flaps (at gross weight)	36 mph	42 mph
Landing Roll	200 ft	200 ft
Endurance (with 2 tanks, 18 gal.)	3.0 hrs + reserve	2.5 hrs + reserve
WEIGHTS AND LOADINGS
Gross Weight	920 lbs	1100 lbs
Empty Weight*	478 lbs	544 lbs**
Useful Load	442 lbs	556 lbs
Wing Loading	6.0 lbs	7.2 lbs
Limit Load Factors	+4-2	+ 4-2
