AMD Aircraft Manufacturing & Design Llc

http://sport.aero/

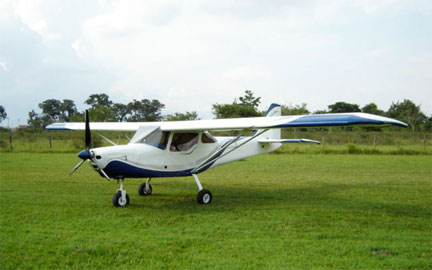

Patriot 150

Wing Span: 32 ft. 10 in. 10 m

Wing Chord: 48 inches 1.23 m.

Wing Area: 132 sq. feet 12.25 m.sq.

Length: 20 ft. 6 in. 6.3 m.

Cabin Height: 45 inches 1.13 m.

Cabin Width: 46 inches 1.16 m.

Landing Gear: tricycle, steerable nosewheel

Landing Gear Width 78 inches 2.0 m.

Seats: 2, side by side

Engine: Continental O-200, 100 hp max.

Fuel Capacity: 24 US Gallons (2 x 12) 90 litres

Gross Weight: 1,310 lbs 595 kg

Empty Weight: 785 lbs. 356 kg.

Useful Load: 525 lbs. 240 kg.

Load Limits: +6 G / -3 G
