NexAer

http://www.nexaer.com

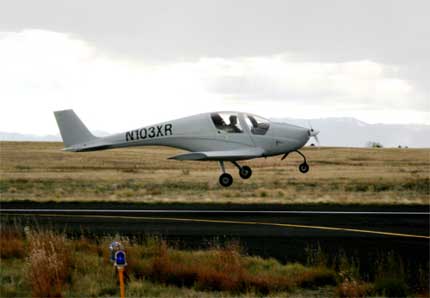

LS1

Length: 23.25 ft.

Height: 7 ft. 10 in.

Wing span: 29.5 ft.

Wing Area: 124 sq. ft.

Cabin Width: 54 in.

Seat width: 21 in.

Max Gross Weight: 1320 lbs.

Empty Weight*: 750 lbs.

Fuel Capacity: 27 gal. (162 lbs.)

Useful Load: 570 lbs.

Design load factor: +4.5/-2.0 g

Power: 80 - 120 hp

Planned engine options:

Jabiru 2200 or 3300

Rotax 912

Continental O-200

Lycoming O-235

Stall speed: 44 knots (51 mph)Max speed in level flight: 120 knots (138 mph)Maneuvering speed (VA): 105 knots (121 mph)

Never-exceed speed (VNE): 160 knots (184 mph)

Max rate of climb (sea level): 1500 ft./min.

Max rate of climb (10,000 ft.): 700 ft./min.

Service ceiling: TBD

Take-off distance (sea level): 350 ft.

Take-off distance (10,000 ft): 750 ft.

Endurance: 4 hours (with 30 minute reserve)

Range: 550 miles (ave.)
