Model
|
LCR - 407 SG ti
|
|
Design
|
single rotor fuel-injected engine,
electronic ignition
|
|

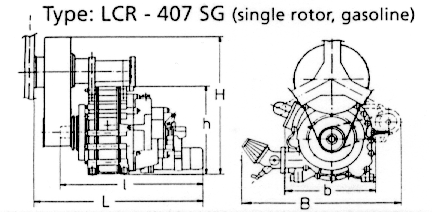

Dim. [inch’s] L x W x H
l x w x h
|
18.94 x 18.19 x 16.93
15.91 x 11.02 x 11.22
|
|
Weight [lbs] Engine
Drive
Electric system
|
55.12
14.33
9.92
|
|
Performance at speed
|
40 HP @ 6500 RPM – 37.5 HP @ 6000
RPM
|
|
Torque [Nm]
at speed [rpm]
|
42
4500
|
|
Displacement
|
407 cm³
|
|
BSFC
|
.49 lbs/HP/hr
|
|
Fuel
|
unleaded gasoline / Mogas (ROZ 92) or 100LL 1:80-mixture (premix)
|
|
Lubrication
|
standard-2-stroke-oil (API-TC)
|
|
Ignition unit
|
WANKEL tric-injection
with engine management system
|
|
Electric starter
|
12 V / 900 W
|
|
Generator
|
14 V / 200 W
|
|
Standard specification
|
Engine equipment with electric
starter, generator, air-filter, engine management system with twin spark
ignition
|
|
Optional
|
Nirosta exhaust muffler, radiator, 3:1 or 2:1 HDT
cog-belt reduction drive
|
